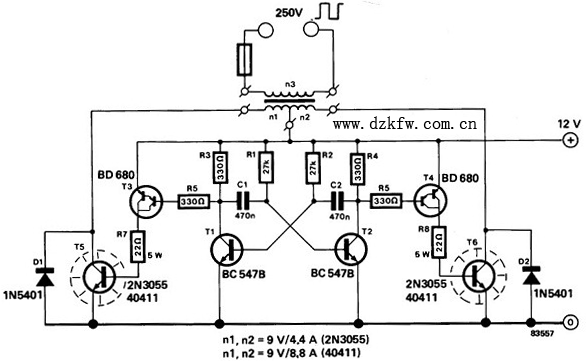

會員注冊A power inverter converts DC power or direct current to standard AC power or alternating current. The following schematic shows a 12V power inverter Circuit Diagram.
power inverter Circuit Parts List:
R1 ___ 27 KOhm
R2 ___ 27 KOhm
R3 ___ 330 Ohm
R4 ___ 330 Ohm
R5 ___ 330 Ohm
R7 ___ 22 Ohm
R8 ___ 22 Ohm
D1 ___ 1N5401
D2 ___ 1N5401
C1 ___ 470 nF
C2 ___ 470 nF
T1 ___ BC547B
T2 ___ BC547B
T3 ___ BD680
T4 ___ BD680
T5 ___ 2N3055
T6 ___ 2N3055
